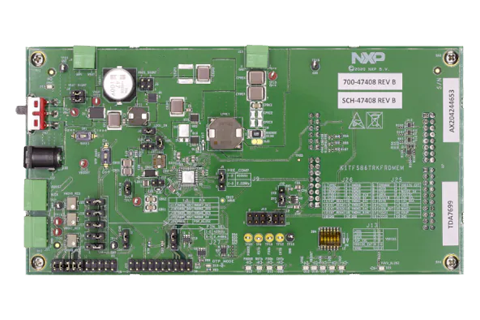

For ADAS and automotive electrification, functional safety is increasingly vital. NXP's evaluation board for the FS86 Safety SBC for domain control (ASIL B and D) highlights it's power capability, the safety integration and system scalability of domain controller applications to address multiple MCU requirements. Several Nexperia parts feature on this board.

Key features & benefits

  • 60 V DC maximum input voltage for 12 V and 24 V applications.
  • VPRE synchronous buck controller with external MOSFETs. Configurable output voltage, switching frequency, and current capability up to 10 A peak.
  • Synchronous BUCK1 converter, dedicated to MCU core supply with SVS capability. Configurable output voltage and current capability up to 3.6 A peak.
  • 2x linear voltage regulators for MCU IOs and ADC supply, external physical layer. Configurable output voltage and current capability up to 400 mA DC.
  • OFF mode (power down) with very low Iq (10 µA typ) FIT for ASIL D with Independent Safety Monitoring Unit.

Key applications

ADAS platform

Products on the board (6)

Type number Description Status Quick access
BUK9K18-40E Dual N-channel 40 V, 19.5 mΩ logic level MOSFET Production
BZX84-A5V1 Voltage regulator diodes Production
NX3008NBK 30 V, 400 mA N-channel Trench MOSFET Production
PMEG2005AEL 20 V, 0.5 A ultra low VF Schottky barrier rectifier Production
PMEG6045ETP High-temperature 60 V, 4.5 A Schottky barrier rectifier Production
PRTR5V0U2AX Ultra low capacitance double rail-to-rail ESD protection diode Production

Related boards (1)

Board Description Type Quick links Shop link
NXP FS86 Functional safety NXP-FS86-Functional-safety NXP FS86 Functional safety Reference design

Products on the board (6)

Type number Description Status Quick access
BUK9K18-40E Dual N-channel 40 V, 19.5 mΩ logic level MOSFET Production
BZX84-A5V1 Voltage regulator diodes Production
NX3008NBK 30 V, 400 mA N-channel Trench MOSFET Production
PMEG2005AEL 20 V, 0.5 A ultra low VF Schottky barrier rectifier Production
PMEG6045ETP High-temperature 60 V, 4.5 A Schottky barrier rectifier Production
PRTR5V0U2AX Ultra low capacitance double rail-to-rail ESD protection diode Production

Related boards (1)

Board Description Type Quick links Shop link
NXP FS86 Functional safety NXP-FS86-Functional-safety NXP FS86 Functional safety Reference design
