Key features and benefits
- Comprehensive range of packages and configurations
- Supports customized high density circuit designs
- Low-leakage and high-voltage types available
- High switching speeds
- Very low capacitance
Key applications
- General-purpose switching
- Ultra-high-speed switching
Parametric search
Products
Type number | Description | Status | Quick access |
---|---|---|---|
1PS302-Q | Dual high-speed switching diode | Production | |
BAS101-Q | High-voltage switching diode | Production | |
BAS101S-Q | High-voltage switching dual diode | Production | |
BAS116 | Low-leakage diode | Production | |
BAS116DY-Q | Low-leakage dual switching diode | Production | |
BAS116GW | Low leakage switching diode | Production | |
BAS116H | Low leakage switching diode | Production | |
BAS116L | Low-leakage diode | Production | |
BAS116LS-Q | Low-leakage diode | Production | |
BAS116QA | Low-leakage diode | Production | |
BAS116T | Single low leakage current switching diode | EndOfLife | |
BAS116VY-Q | Low-leakage triple switching diode | Production | |
BAS16-Q | High-speed switching diode | Production | |
BAS16DY-Q | High-speed dual switching diode | Production | |
BAS16H-Q | High-speed switching diode | Production | |
BAS16J-Q | High-speed switching diode | Production | |
BAS16L-Q | High-speed switching diode | Production | |
BAS16LD-Q | Single high-speed switching diode | Production | |
BAS16LS-Q | High-speed switching diode | Production | |
BAS16QA-Q | High-speed switching diode | Production | |
BAS16TH | High-speed switching diode | Production | |
BAS16VY-Q | High-speed switching diode | Production | |
BAS16W-Q | High-speed switching diode | Production | |
BAS19-Q | High-voltage switching diode | Production | |
BAS20-Q | High-voltage switching diode | Production | |
BAS21-Q | High-voltage switching diode | Production | |
BAS21AVD-Q | High-voltage switching diodes | Production | |
BAS21AW-Q | High-voltage switching diode | Production | |
BAS21GW-Q | High-voltage switching diode | Production | |
BAS21H-Q | High-voltage switching diode | Production | |
BAS21J-Q | Single high-speed switching diode | Production | |
BAS21LD | High-voltage switching diode | Production | |
BAS21LL-Q | High-voltage switching diode | Production | |
BAS21LS-Q | High-speed switching diode | Production | |
BAS21PG-Q | Dual isolated high-voltage switching diode | Production | |
BAS21QA-Q | High-voltage switching diode | Production | |
BAS21QB-Q | High-voltage switching diode | Production | |
BAS21QC-Q | High-voltage switching diode | Production | |
BAS21SW-Q | High-voltage switching diode | Production | |
BAS21TH-Q | High-voltage switching diode | Production | |
BAS21VD-Q | High-voltage switching diodes | Production | |
BAS21W-Q | High-voltage switching diode | Production | |
BAS29 | General purpose controlled avalanche (double) diodes | Production | |
BAS30LS-Q | High-speed switching diode | Production | |
BAS31 | General purpose controlled avalanche (double) diodes | Production | |
BAS316-Q | High-speed switching diode | Production | |
BAS321-Q | General purpose diode | Production | |
BAS321J-Q | High-voltage switching diode | Production | |
BAS35 | General purpose controlled avalanche (double) diodes | Production | |
BAS416-Q | Low-leakage switching diode | Production | |
BAS516-Q | High-speed switching diode | Production | |
BAS521-Q | High-voltage switching diode | Production | |
BAS521B-Q | High-voltage switching diode | Production | |
BAS56 | High-speed double diode | Production | |
BAS716 | Low-leakage diode | Production | |
BAV170-Q | Low-leakage double diode | Production | |
BAV170M | Dual common cathode low-leakage diode | Production | |
BAV170QA-Q | Dual common cathode low-leakage diode | Production | |
BAV199-Q | Low-leakage double diode | Production | |
BAV199QC-Q | Low-leakage double diode | Production | |
BAV199S-Q | Low-leakage quadruple diode | Production | |
BAV199W-Q | Low-leakage double diode | Production | |
BAV23-Q | Dual high-voltage switching diodes | Production | |
BAV23A-Q | Dual high-voltage switching diodes | Production | |
BAV23C-Q | Dual high-voltage switching diodes | Production | |
BAV23QA | Dual common cathode high-voltage switching diode | Production | |
BAV23S-Q | Dual high-voltage switching diodes | Production | |
BAV70-Q | High-speed switching double diode | Production | |
BAV70QB-Q | Dual common cathode high-speed switching diode | Production | |
BAV70S-Q | High-speed switching double diode | Production | |
BAV70SRA | Quad high-speed switching diodes | Production | |
BAV70T | High-speed switching diodes | EndOfLife | |
BAV70W-Q | High-speed switching double diode | Production | |
BAV74-Q | High-speed double diode | Production | |
BAV756S | High-speed switching diode | Production | |
BAV99-Q | High-speed switching diode | Production | |
BAV99QA-Q | Dual series high-speed switching diodes | Production | |
BAV99QB-Q | Dual series high-speed switching diodes | Production | |
BAV99QC-Q | Dual series high-speed switching diodes | Production | |
BAV99S-Q | High-speed switching diode | Production | |
BAV99W-Q | High-speed switching diode | Production | |
BAW101-Q | High voltage double diode | Production | |
BAW101S-Q | High voltage double diode | Production | |
BAW156 | Low-leakage double diode | Production | |
BAW156-Q | Low-leakage double diode | Production | |
BAW56-Q | High-speed switching diode | Production | |
BAW56M | High-speed switching diode | Production | |
BAW56QA | Dual common anode high-speed switching diode | Production | |
BAW56QB-Q | Dual common anode high-speed switching diode | Production | |
BAW56S-Q | High-speed switching diode | Production | |
BAW56SRA-Q | Quad high-speed switching diodes | Production | |
BAW56T | High-speed switching diodes | EndOfLife | |
BAW56W-Q | High-speed switching diode | Production | |
PMBD914-Q | High-speed switching diode | Production |
Marcom graphics (1) |
|||
---|---|---|---|
File name | Title | Type | Date |

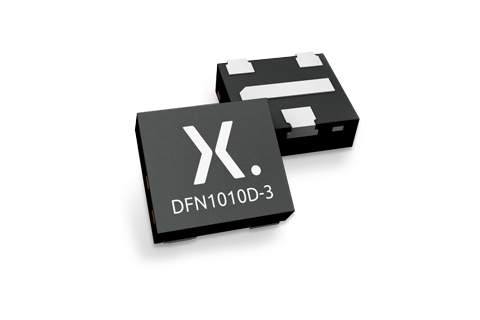

DFN1010D-3_SOT1215_mk.png | plastic, thermal enhanced ultra thin small outline package; 3 terminals; 0.75 mm pitch; 1.1 mm x 1 mm x 0.37 mm body | Marcom graphics | 2017-01-28 |
Selection guide (1) |
|||
File name | Title | Type | Date |
Nexperia_Selection_guide_2023.pdf | Nexperia Selection Guide 2023 | Selection guide | 2023-05-10 |
