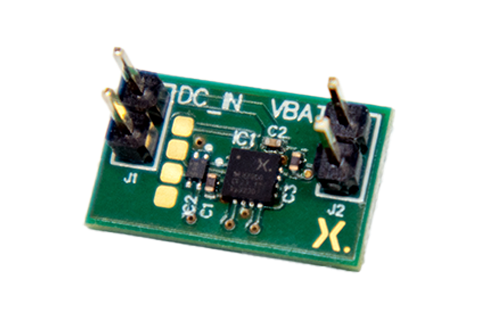

NEVB-NEH2000BY-4V2 energy harvesting evaluation board

The Nexperia NEVB-NEH2000BY-4V2 board allows convenient evaluation of the NEH2000BY energy harvesting PMIC. Designed to be simple and very compact, it is ideal to get started with energy harvesting. The small form factor enables easy integration into prototype applications.

NEVB-NEH2000BY-4V2

Key features and benefits

  • Designed to be simple
    • Easily connectable to a harvester, a storage element and a load
    • Plug-and-Play: No preprogramming required
    • Simple testing interface

  • Battery protection included with an Over Voltage Protection (OVP) chip which is compatible with batteries with a maximum voltage of 4.2 V (e.g. LiFePo, hybrid supercapacitors). The storage element choice depends on the application design.
  • Compact size
    • 17 mm x 10 mm
    • Embeddable into size-constrained applications

Products on the board (1)

Type number Description Status Quick access
NEH2000BY Energy harvesting PMIC Production

Related boards (1)

Board Description Type Quick links Shop link
NEVB-NEH2000BY-3V5 energy harvesting evaluation board nevb-neh2000by-3v5-energy-harvesting-evaluation-board NEVB-NEH2000BY-3V5 energy harvesting evaluation board Evaluation board Order

Latest news and blogs

Latest videos

Visualizing our Energy Harvesting System

Products on the board (1)

Type number Description Status Quick access
NEH2000BY Energy harvesting PMIC Production

Related boards (1)

Board Description Type Quick links Shop link
NEVB-NEH2000BY-3V5 energy harvesting evaluation board nevb-neh2000by-3v5-energy-harvesting-evaluation-board NEVB-NEH2000BY-3V5 energy harvesting evaluation board Evaluation board Order

Documentation (2)

File name Title Type Date
Nexperia_NEH2000BY_Energy_Harvesting_Solution_leaflet Maximize energy storage and sustainability in IoT and low power wireless devices with energy harvesting PMIC Leaflet 2023-04-04
UM90020 NEH2000BY PMIC evaluation boards user guide User manual 2023-07-11
