I²C repeaters

Our NCA9xxx family of I²C repeaters offers a reliable solution for boosting system performance by preserving signal quality, extending bus range, and supporting the increasing demands of interconnected and intelligent enterprise systems. I²C repeaters provide a low-power option, consuming ultra-low power in standby and disabled modes, making them ideal for power-sensitive applications. These repeaters are crucial for expanding and enhancing bus signal load capacity, avoiding an overload capacitance.  I²C bus systems can be easily extended without compromising performance during switching, even in complex systems spread over longer distances.

Key Features



  • Dual channel bidirectional I²C bus repeater
  • Voltage level translation from 1.08 V to 3.6 V at both port A and port B
  • Guaranteed 1 MHz operation (true I²C  FM+) and supports FM and SM operations
  • No static voltage offset
  •  Schmitt trigger inputs improve the noise immunity by filtering the noise components of the signals
  • Input and output rising-edge signal accelerators at all I/O’s
  • Lock-free operation
  • Glitch-free and sequence-independent IC power-up
  • I²C clock-stretching support
  • Open-drain input/outputs
  • Compatibility with I²C bus and SMBus protocols

Applications



  • Devices for IoT applications
  • Cell phones, tablets, laptops
  • Portable medical devices,
  • Portable instrumentation and test equipment's
  • Telecom switching and networking equipment
  • Products with many I²C slave devices and / or long PCB trace
  • Power-sensitive applications

Products

Type number Description Status Quick access

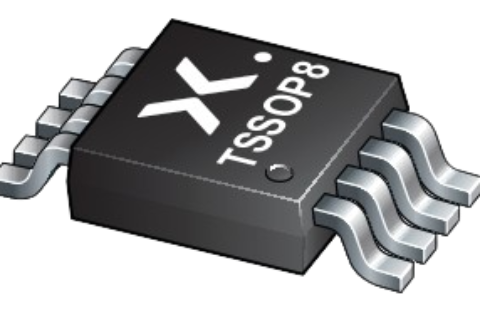

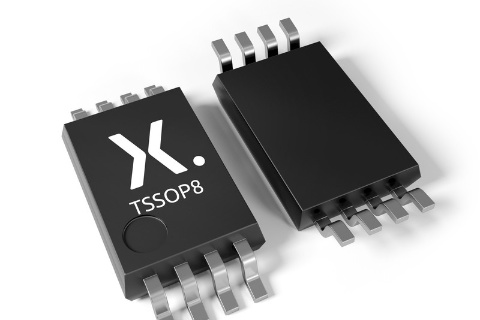

NCA9700DQ Level translating Fm+ I²C bus repeater/accelerator Production
NCA9701AGX Level translating Fm+ I²C bus repeater/accelerator Production

Please contact us if you have any questions. If you are in need of design support, please fill in the technical support form, we will get back to you shortly.

Please visit our community forum or contact us for further support.
