Low VCEsat (BISS) power transistors double

Keep your design’s power consumption and heat dissipation to a minimum

Delivering optimum power performance while saving space, our 'breakthrough in small signal' (BISS) transistors certainly live up to their name. These low VCEsat devices offer low power losses with higher energy efficiency than standard transistors in the same package. They help simplify circuit layouts with more flexibility, and are available in smaller packages that can save you valuable PCB space.

Parametric search

Low VCEsat (BISS) power transistors double
Please wait loading data...
Parametric search is unavailable.

Products

Type number Description Status Quick access
LFPAK bipolar transistors Nexperia bipolar transistors in LFPAK56 and LFPAK56D - the true power packages for smart efficiency ACT
PHPT610030NK-Q NPN/NPN high power double bipolar transistor Production
PHPT610030NPK NPN/PNP high power double bipolar transistor Production
PHPT610030PK-Q PNP/PNP high power double bipolar transistor Production
PHPT610030NPK-Q NPN/PNP high power double bipolar transistor Production
PHPT610035NK-Q NPN/NPN high power double bipolar transistor Production
PHPT610035PK-Q PNP/PNP matched high power double bipolar transistor Production
Visit our documentation center for all documentation

Marcom graphics (1)

File name Title Type Date

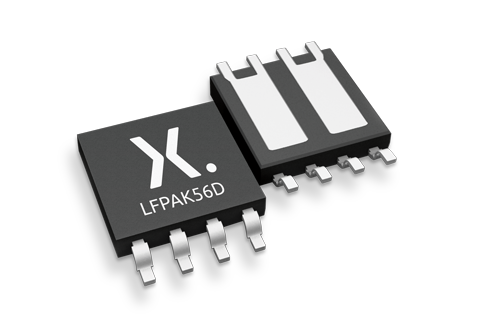

LFPAK56D_SOT1205_mk.png plastic, single ended surface mounted package (LFPAK56D); 8 leads; 1.27 mm pitch; 4.7 mm x 5.3 mm x 1.05 mm body Marcom graphics 2017-01-28

Selection guide (1)

File name Title Type Date
Nexperia_Selection_guide_2023.pdf Nexperia Selection Guide 2023 Selection guide 2023-05-10
