Key features and benefits
- Wide supply voltage 3.0 to 6.0 V
- Max. frequency up to 17 MHz (typ.)
- Low power consumption
- Excellent VCO frequency linearity
- Choice of phase comparators
- User configurable
Key applications
- FM modulation and demodulation
- Frequency synthesis and multiplication
- Clock recovery
- Data synchronization and conditioning
- Voltage-to-frequency conversion
- Motor-speed control.interface
Parametric search
Phase Locked Loops
Please wait loading data... Parametric search is unavailable.
Products
| Type number | Description | Status | Quick access |
|---|---|---|---|
| 74HC4046A; 74HCT4046A | Phase-locked loop with VCO | ACT |
|
| 74HC4046AD | Phase-locked loop with VCO | Production | |
| 74HC4046ADB | Phase-locked loop with VCO | EndOfLife | |
| 74HC4046APW | Phase-locked loop with VCO | Production | |
| 74HCT4046AD | Phase-locked loop with VCO | Production | |
| 74HCT4046ADB | Phase-locked loop with VCO | EndOfLife | |
| 74HCT4046APW | Phase-locked loop with VCO | Production | |
| 74HCT9046A | PLL with band gap controlled VCO | ACT |
|
| 74HCT9046AD | PLL with band gap controlled VCO | EndOfLife | |
| 74HCT9046APW | PLL with band gap controlled VCO | EndOfLife | |
| HEF4046B | Phase-locked loop | ACT |
|
| HEF4046BT | Phase-locked loop | Production | |
| 74HCT4046AN | EndOfLife |
Visit our documentation center for all documentation
Marcom graphics (1) |
|||
|---|---|---|---|
| File name | Title | Type | Date |

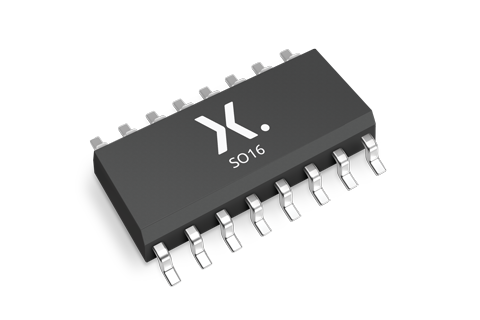

| SO16_SOT109-1_mk.png | plastic, small outline package; 16 leads; 1.27 mm pitch; 9.9 mm x 3.9 mm x 1.35 mm body | Marcom graphics | 2017-01-28 |
