Low VCEsat (BISS) power transistors single

Keep your design’s power consumption and heat dissipation to a minimum

Delivering optimum power performance while saving space, our 'breakthrough in small signal' (BISS) transistors certainly live up to their name. These low VCEsat devices offer low power losses with higher energy efficiency than standard transistors in the same package. They help simplify circuit layouts with more flexibility, and are available in smaller packages that can save you valuable PCB space.

Parametric search

Low VCEsat (BISS) power transistors single
Please wait loading data...
Parametric search is unavailable.

Products

Type number Description Status Quick access
LFPAK bipolar transistors Nexperia bipolar transistors in LFPAK56 and LFPAK56D - the true power packages for smart efficiency ACT
PHPT60603PY 60 V, 3 A PNP high power bipolar transistor Production
PHPT60606NY 60 V, 6 A NPN high power bipolar transistor Production
PHPT60606PY 60 V, 6 A PNP high power bipolar transistor Production
PHPT60610NY 60 V, 10 A NPN high power bipolar transistor Production
PHPT60610PY 60 V, 10 A PNP high power bipolar transistor Production
PHPT61003PY 100 V, 3A PNP high power bipolar transistor Production
PHPT61006PY 100 V, 6 A PNP high power bipolar transistor Production
PHPT61010PY 100 V, 10 A PNP high power bipolar transistor Production
PBSS4620PA-Q 20 V, 6 A NPN low VCEsat transistor Production
PBSS5540Z-Q 40 V low VCEsat PNP transistor Production
PHPT60415NY-Q 40 V, 15 A NPN high power bipolar transistor Production
PHPT60603NY-Q 60 V, 3 A NPN high power bipolar transistor Production
PHPT60410NY-Q 40 V, 10 A NPN high power bipolar transistor Production
PHPT60410PY-Q 40 V, 10 A PNP high power bipolar transistor Production
PHPT60406PY-Q 40 V, 6 A PNP high power bipolar transistor Production
PHPT60406NY-Q 40 V, 6 A NPN high power bipolar transistor Production
PHPT60415PY-Q 40 V, 15 A PNP high power bipolar transistor Production
PHPT60610NY-Q 60 V, 10 A NPN high power bipolar transistor Production
PHPT61010NY-Q 100 V, 10 A NPN high power bipolar transistor Production
PHPT60610PY-Q 60 V, 10 A PNP high power bipolar transistor Production
PHPT61010PY-Q 100 V, 10 A PNP high power bipolar transistor Production
PHPT61006NY-Q 100 V, 6 A NPN high power bipolar transistor Production
PHPT61003NY-Q 100 V, 3 A NPN high power bipolar transistor Production
PHPT61006PY-Q 100 V, 6 A PNP high power bipolar transistor Production
PHPT60606NY-Q 60 V, 6 A NPN high power bipolar transistor Production
PHPT60603PY-Q 60 V, 3 A PNP high power bipolar transistor Production
PHPT60606PY-Q 60 V, 6 A PNP high power bipolar transistor Production
Visit our documentation center for all documentation

Marcom graphics (1)

File name Title Type Date

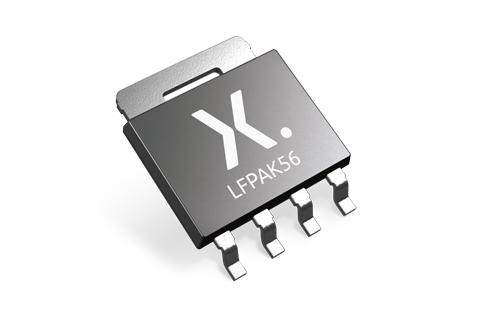

LFPAK56_POWER-SO8_SOT669_mk.png plastic, single-ended surface-mounted package; 4 terminals; 4.9 mm x 4.45 mm x 1 mm body Marcom graphics 2017-01-28

Selection guide (1)

File name Title Type Date
Nexperia_Selection_guide_2023.pdf Nexperia Selection Guide 2023 Selection guide 2023-05-10
