A bountiful selection of double transistors ensures you can pick the best device for your design. For today’s increasingly efficient systems – where both power and space are at a premium – we offer SMD packages includes our ultra small leadless housing SOT883.

Key features and benefits

  • Ultra small 1006 sized SOT883 (SC-101) leadless package
  • Broad choice of SMD and leaded package options
  • Wide range of double and single functions
  • More than 300 different products

Key applications

  • General purpose switching and amplification

Parametric search

Double bipolar transistors
Please wait loading data...
Parametric search is unavailable.

Products

Type number Description Status Quick access
DFN2020_6_SERIES ACT
PBSS4112PAN 120 V, 1 A NPN/NPN low VCEsat (BISS) transistor Production
PBSS4112PANP 120 V, 1 A NPN/PNP low VCEsat (BISS) transistor Production
PBSS4130PAN 30 V, 1 A NPN/NPN low VCEsat transistor Production
PBSS4130PANP 30 V, 1 A NPN/PNP low VCEsat (BISS) transistor Production
PBSS4160PAN 60 V, 1 A NPN/NPN low VCEsat (BISS) transistor Production
PBSS4160PANP 60 V, 1 A NPN/PNP low VCEsat transistor Production
PBSS4160PANP-Q 60 V, 1 A NPN/PNP low VCEsat transistor Production
PBSS4160PANPS 60 V, 1 A NPN/NPN low VCEsat (BISS) transistor Production
PBSS4160PANS 60 V, 1 A NPN/NPN low VCEsat (BISS) transistor Production
PBSS4220PANS 20 V, 2 A NPN/NPN low VCEsat BISS double transistor Production
PBSS4230PAN 30 V, 2 A NPN/NPN low VCEsat (BISS) transistor Production
PBSS4230PANP 30 V, 2 A NPN/PNP low VCEsat (BISS) transistor Production
PBSS4260PAN 60 V, 2 A NPN/NPN low VCEsat (BISS) transistor Production
PBSS4260PANP 60 V, 2 A NPN/PNP low VCEsat (BISS) transistor Production
PBSS4260PANPS 60 V, 2 A NPN/PNP low VCEsat (BISS) double transistor Production
PBSS4260PANS 60 V, 2 A NPN/NPN low VCEsat double transistor Production
PBSS4260PANS-Q 60 V, 2 A NPN/NPN low VCEsat double transistor Production
PBSS5112PAP 120 V, 1 A PNP/PNP low VCEsat (BISS) transistor EndOfLife
PBSS5130PAP 30 V, 1 A PNP/PNP low VCEsat transistor Production
PBSS5130PAP-Q 30 V, 1 A PNP/PNP low VCEsat transistor Production
PBSS5160PAP 60 V, 1 A PNP/PNP low VCEsat (BISS) transistor Production
PBSS5160PAPS 60 V, 1 A PNP/PNP low VCEsat (BISS) transistor Production
PBSS5220PAPS 20V, 2 A PNP/PNP low VCEsat double transistor Production
PBSS5220PAPS-Q 20V, 2 A PNP/PNP low VCEsat double transistor Production
PBSS5230PAP 30 V, 2 A PNP/PNP low VCEsat (BISS) transistor Production
PBSS5255PAPS 55V, 2A PNP/PNP low VCEsat (BISS) double transistor Production
PBSS5255PAPS-Q 55V, 2A PNP/PNP low VCEsat (BISS) double transistor Production
PBSS5260PAP 60 V, 2 A PNP/PNP low V (BISS) transistor Production
PBSS5260PAPS 60 V, 2 A PNP/PNP low VCEsat (BISS) double transistor Production
LFPAK bipolar transistors ACT
PHPT610030NK NPN/NPN high power double bipolar transistor Production
PHPT610030NK-Q NPN/NPN high power double bipolar transistor Production
PHPT610030NPK NPN/PNP high power double bipolar transistor Production
PHPT610030PK PNP/PNP high power double bipolar transistor Production
PHPT610030PK-Q PNP/PNP high power double bipolar transistor Production
PHPT610035NK NPN/NPN high power double bipolar transistor Production
PHPT610035PK PNP/PNP matched high power double bipolar transistor Production
PIMZ2; PUMZ2 NPN/PNP general-purpose double transistors ACT
PIMZ2 NPN/PNP general-purpose double transistor Production
PUMZ2 NPN/PNP general-purpose double transistor Production
BC807DS PNP/PNP general purpose double transistor Production
BC807DS-Q PNP/PNP general purpose double transistors Production
BC807RA 45 V, 500 mA PNP/PNP general-purpose double transistors Production
BC817DPN NPN/PNP general purpose transistor Production
BC817DPN-Q NPN/PNP general purpose transistor Production
BC817DS NPN/NPN general purpose double transistors Production
BC817DS-Q NPN/NPN general purpose double transistor Production
BC817RA 45 V, 500 mA NPN/NPN general-purpose double transistors Production
BC817RAPN 45 V, 500 mA NPN/PNP general-purpose double transistors Production
BC846BPN 65 V, 100 mA NPN/PNP general-purpose transistor Production
BC846BPN-Q 65 V, 100 mA NPN/PNP general-purpose transistor Production
BC846BPNH 65 V, 100 mA NPN/PNP general-purpose double transistor EndOfLife
BC846BPNH-Q 65 V, 100 mA NPN/PNP general-purpose double transistor Production
BC846BS 65 V, 100 mA NPN/NPN general-purpose transistor Production
BC846BS-Q 65 V, 100 mA NPN/NPN general-purpose transistor Production
BC846BSH 65 V, 100 mA NPN/NPN general-purpose double transistor EndOfLife
BC846BSH-Q 65 V, 100 mA NPN/NPN general-purpose double transistor Production
BC846DS 65 V, 100 mA NPN/NPN general-purpose transistor Production
BC846S NPN general purpose double transistor Production
BC846S-Q NPN general purpose double transistor Production
BC846SH 65 V, 100 mA NPN/NPN general-purpose double transistor EndOfLife
BC846SH-Q 65 V, 100 mA NPN/NPN general-purpose double transistor Production
BC847BPN 45 V, 100 mA NPN/PNP general-purpose transistor Production
BC847BPN-Q 45 V, 100 mA NPN/PNP general-purpose transistor Production
BC847BPNH 45 V, 100 mA NPN/PNP general-purpose double transistor EndOfLife
BC847BPNH-Q 45 V, 100 mA NPN/PNP general-purpose double transistor Production
BC847BS 45 V, 100 mA NPN/NPN general-purpose transistor Production
BC847BS-Q 45 V, 100 mA NPN/NPN general-purpose transistor Production
BC847BSH 45 V, 100 mA NPN/NPN general-purpose double transistor EndOfLife
BC847BSH-Q 45 V, 100 mA NPN/NPN general-purpose double transistor Production
BC847BV NPN general purpose double transistor Production
BC847BVN 45 V, 100 mA NPN/PNP general purpose transistor Production
BC847DS 45 V, 100 mA NPN/NPN general-purpose transistor Production
BC847QAPN 45 V, 100 mA NPN/PNP general-purpose transistor Production
BC847QAS 45 V, 200 mA NPN/NPN general-purpose transistor Production
BC847RA 45 V, 100 mA NPN/NPN general-purpose double transistors Production
BC847RAPN 45 V, 100 mA NPN/PNP general-purpose double transistors Production
BC856BS 65 V, 100 mA PNP/PNP general-purpose transistor Production
BC856BS-Q 65 V, 100 mA PNP/PNP general-purpose transistor Production
BC856BSH 65 V, 100 mA PNP/PNP general-purpose double transistor EndOfLife
BC856BSH-Q 65 V, 100 mA PNP/PNP general-purpose double transistor Production
BC856S 65 V, 100 mA PNP/PNP general-purpose transistor Production
BC856S-Q 65 V, 100 mA PNP/PNP general-purpose transistor Production
BC856SH 65 V, 100 mA PNP/PNP general-purpose double transistor EndOfLife
BC856SH-Q 65 V, 100 mA PNP/PNP general-purpose double transistor Production
BC857BS PNP general purpose double transistor Production
BC857BS-Q PNP general purpose double transistor Production
BC857BSH 45 V, 100 mA PNP/PNP general-purpose double transistor EndOfLife
BC857BSH-Q 45 V, 100 mA PNP/PNP general-purpose double transistor Production
BC857BV 45 V, 100 mA PNP general purpose double transistor Production
BC857QAS 45 V, 100 mA PNP/PNP general-purpose transistor Production
BC857RA 45 V, 100 mA PNP/PNP general-purpose double transistors Production
NMB2227A 40 V, 600 mA NPN/PNP general-purpose transistors Production
PBSS2515VPN 15 V low VCEsat NPN/PNP transistor EndOfLife
PBSS2515VS 15 V low VCEsat NPN double transistor EndOfLife
PBSS2515YPN 15 V low VCEsat NPN/PNP transistor Production
PBSS2515YPN-Q 15 V low VCEsat NPN/PNP transistor Production
PBSS3515VS 15 V low VCEsat PNP double transistor EndOfLife
PBSS4021SN 20 V, 7.5 A NPN/NPN low V_CEsat (BISS) transistor EndOfLife
PBSS4021SP 20 V, 6.3 A PNP/PNP low VCEsat (BISS) transistor EndOfLife
PBSS4021SPN 20 V NPN/PNP low V_CEsat (BISS) transistor EndOfLife
PBSS4032SN 30 V, 5.7 A NPN/NPN low V_CEsat (BISS) transistor EndOfLife
PBSS4032SP 30 V, 4.8 A PNP/PNP low VCEsat (BISS) transistor EndOfLife
PBSS4032SPN 30 V, 5.7 A NPN/PNP low VCEsat (BISS) transistor EndOfLife
PBSS4041SN 60 V, 6.7 A NPN/NPN low V_CEsat (BISS) transistor EndOfLife
PBSS4041SP 60 V, 5.9 A PNP/PNP low VCEsat (BISS) transistor EndOfLife
PBSS4041SPN 60 V NPN/PNP low V_CEsat (BISS) transistor EndOfLife
PBSS4112PAN-Q 120 V, 1 A NPN/NPN low VCEsat (BISS) transistor Production
PBSS4112PANP-Q 120 V, 1 A NPN/PNP low VCEsat (BISS) transistor Production
PBSS4130PAN-Q 30 V, 1 A NPN/NPN low VCEsat transistor Production
PBSS4140DPN 40 V low VCEsat NPN/PNP transistor Production
PBSS4140DPN-Q 40 V low VCEsat NPN/PNP transistor Production
PBSS4160DPN 60 V, 1 A NPN/PNP low VCEsat (BISS) transistor Production
PBSS4160DS 60 V, 1 A NPN/NPN low VCEsat transistor Production
PBSS4160DS-Q 60 V, 1 A NPN/NPN low VCEsat transistor Production
PBSS4240DPN 40 V low VCEsat NPN/PNP transistor Production
PBSS4350SPN 50 V, 2.7 A NPN/PNP low VCEsat (BISS) transistor EndOfLife
PBSS4350SS 50 V, 2.7 A NPN/NPN low VCEsat (BISS) transistor EndOfLife
PBSS5160DS 60 V, 1 A PNP/PNP low VCEsat transistor Production
PBSS5160DS-Q 60 V, 1 A PNP/PNP low VCEsat transistor Production
PBSS5350SS 50 V, 2.7 A PNP/PNP low VCEsat (BISS) transistor EndOfLife
PEMT1 PNP/PNP general purpose double transistor Production
PEMX1 NPN/NPN general purpose double transistor Production
PEMZ1 NPN/PNP general purpose transistor Production
PEMZ7 NPN/PNP general purpose double transistor Production
PHPT610030NPK-Q NPN/PNP high power double bipolar transistor Production
PHPT610035NK-Q NPN/NPN high power double bipolar transistor Production
PHPT610035PK-Q PNP/PNP matched high power double bipolar transistor Production
PIMT1 PNP general purpose double transistor Production
PMBT2222AYS 40 V, 600 mA, double NPN switching transistor Production
PMBT2222AYS-Q 40 V, 600 mA, double NPN switching transistor Production
PMBT2227AYS-Q 40 V, 600 mA, NPN/PNP double switching transistor Production
PMBT2907AYS 60V, 600 mA, double PNP switching transistor Production
PMBT3904RA 40 V, 200 mA double NPN switching transistor Production
PMBT3904VS 40 V, 200 mA NPN/NPN switching transistor Production
PMBT3904YS 40 V, 200 mA NPN/NPN general-purpose double transistor Production
PMBT3904YS-Q 40 V, 200 mA NPN/NPN general-purpose double transistor Production
PMBT3904YSR 40 V, 200 mA NPN/NPN general-purpose double transistor Production
PMBT3906VS 40 V, 200 mA PNP/PNP switching transistor Production
PMBT3906YS 40 V, 200 mA PNP/PNP general-purpose double transistor Production
PMBT3906YS-Q 40 V, 200 mA PNP/PNP general-purpose double transistor Production
PMBT3946VPN 40 V, 200 mA NPN/PNP switching transistor Production
PMBT3946YPN 40 V, 200 mA NPN/PNP general-purpose double transistor Production
PMBT3946YPN-Q 40 V, 200 mA NPN/PNP general-purpose double transistor Production
PMBT4401YS 40 V, 600 mA, double NPN switching transistor Production
PMBT4403YS 40V, 600 mA double PNP switching transistor Production
PMBTA42DS 300 V, 100 mA NPN/NPN high-voltage double transistor Production
PMBTA42DS-Q 300 V, 100 mA NPN/NPN high-voltage double transistor Production
PUMT1 PNP general purpose double transistor Production
PUMX1 40 V, 100 mA NPN/NPN general-purpose transistor Production
PUMX1-Q 40 V, 100 mA NPN/NPN general-purpose transistor Production
PUMX2 NPN/NPN general-purpose double transistor Production
PUMX2-Q NPN/NPN general-purpose double transistor Production
PUMZ1 NPN/PNP general purpose transistor Production
PUMZ1-Q NPN/PNP general purpose transistor Production
Visit our documentation center for all documentation

Marcom graphics (1)
File name Title Type Date

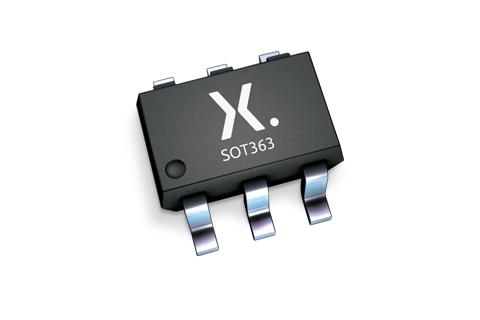

SOT363_mk.png plastic, surface-mounted package; 6 leads; 1.3 mm pitch; 2 mm x 1.25 mm x 0.95 mm body Marcom graphics 2017-01-28

Selection guide (1)
File name Title Type Date
Nexperia_Selection_guide_2023.pdf Nexperia Selection Guide 2023 Selection guide 2023-05-10

Please contact us if you have any questions. If you are in need of design support, please fill in the technical support form, we will get back to you shortly.

Please visit our community forum or contact us for further support.


Cross reference
